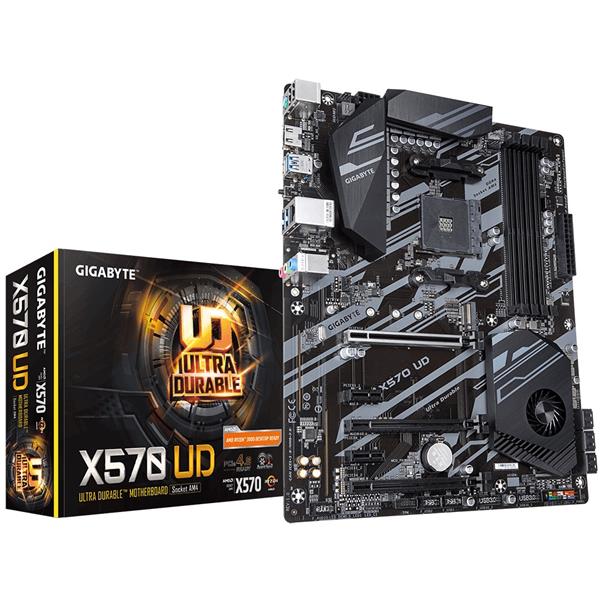

AMD X570 UD Motherboard with 10+2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, PCIe 4.0 x4 M.2 Connector, PCIe 4.0 x16 Slot Armor with Ultra Durable⢠Design, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0 Mother Board
- $154.99
$229.99- $154.99
- Unit price
- per
Save $75.00
Subtotal:
$154.99
Description
xMarketing Information
• Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• 10+2 Phases Digital VRM Solution
• Advanced Thermal Design with Enlarge Heatsink
• Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
• GIGABYTE Gaming GbE LAN with Bandwidth Management
• Supports RGB Light Strip in Full Colors
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Featured HDMI 2.0 support
• Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTEs dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 interfaces on select boards, refined audio,and high speed of Ethernet , to fulfill users performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
Specifications
xDetail Specifications
| | CPU 1.AMD Socket AM4, support for: 3rd Generation AMD RyzenTM processors/ 2nd Generation AMD RyzenTM processors/ 2nd Generation AMD RyzenTM with RadeonTM Vega Graphics processors/ AMD RyzenTM with RadeonTM Vega Graphics processors |
|---|
| | Chipset 1.AMD X570 |
|---|
| | Memory 1.3rd Generation AMD RyzenTM processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2.2nd Generation AMD RyzenTM processors/2nd Generation AMD RyzenTM with RadeonTM Vega Graphics processors/AMD RyzenTM with RadeonTM Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 3.4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 4.Dual channel memory architecture 5.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC mode supported by 3rd Gen AMD RyzenTM/ 2nd Gen AMD RyzenTM and only PRO sku of 2nd Gen AMD RyzenTM with RadeonTM Vega Graphics processors/ AMD RyzenTM with RadeonTM Vega Graphics processors. 6.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 7.Support for Extreme Memory Profile (XMP) memory modules |
|---|
| | Onboard Graphics Integrated Graphics Processor: 1.1 x HDMI port, supporting a maximum resolution of 4096x216060 Hz Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors only. |
|---|
| | Audio 1.Realtek ALC887 codec 2.High Definition Audio 3.2/4/5.1-channel |
|---|
| | LAN 1.Realtek GbE LAN chip (10/100/1000 Mbit) |
|---|
| | Expansion Slots Integrated in the CPU (PCIEX16): 3rd Generation AMD RyzenTM processors: 1.1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2nd Generation AMD RyzenTM processors: 1.1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2nd Generation AMD RyzenTM with Radeon Vega Graphics processors/AMD RyzenTM with RadeonTM Vega Graphics processors: 1.1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 2.2 x PCI Express x16 slots, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4) For 3rd Generation AMD RyzenTM processors only. 3.2 x PCI Express x1 slots, supporting PCIe 4.0/3.0 For 3rd Generation AMD RyzenTM processors only. |
|---|
| | Multi-Graphics Technology 1.Support for AMD Quad-GPU CrossFireTM and 2-Way AMD CrossFireTM technologies Note: For 3rd Generation AMD RyzenTM processors/2nd Generation AMD RyzenTM processors only. |
|---|
| | Storage Interface Integrated in the CPU: 3rd Generation AMD RyzenTM processors: 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD RyzenTM processors/2nd Generation AMD RyzenTM with RadeonTM Vega Graphics processors/AMD RyzenTM with RadeonTM Vega Graphics processors: 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset: 1.6 x SATA 6Gb/s connectors 2.Support for RAID 0, RAID 1, and RAID 10 |
|---|
| | USB Integrated in the CPU: 1.4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1.4 x USB 3.2 Gen 1 ports available through the internal USB headers 2.6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|---|
| | Internal I/O Connectors 1.1 x 24-pin ATX main power connector 2.1 x 8-pin ATX 12V power connector 3.1 x CPU fan header 4.1 x water cooling CPU fan header 5.2 x system fan headers 6.1 x RGB LED strip header 7.6 x SATA 6Gb/s connectors 8.1 x M.2 Socket 3 connector 9.1 x front panel header 10.1 x front panel audio header 11.2 x USB 3.2 Gen 1 headers 12.2 x USB 2.0/1.1 headers 13.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 14.1 x Clear CMOS jumper |
|---|
| | Back Panel Connectors 1.1 x PS/2 keyboard/mouse port 2.1 x HDMI port 3.4 x USB 3.2 Gen 1 ports 4.2 x USB 2.0/1.1 ports 5.1 x Q-Flash Plus button 6.1 x RJ-45 port 7.3 x audio jacks |
|---|
| | I/O Controller 1.iTE I/O Controller Chip |
|---|
| | H/W Monitoring 1.Voltage detection 2.Temperature detection 3.Fan speed detection 4.Water cooling flow rate detection 5.Overheating warning 6.Fan fail warning 7.Fan speed control Whether the fan speed control function is supported will depend on the fan you install. |
|---|
| | BIOS 1.1 x 128 Mbit flash 2.Use of licensed AMI UEFI BIOS 3.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|
| | Unique Features 1.Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. At BIOS Ambient LED AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker 2.Support for Q-Flash Plus 3.Support for Q-Flash 4.Support for Xpress Install |
|---|
| | Bundled Software 1.Norton Internet Security (OEM version) 2.Realtek 8118 Gaming LAN Bandwidth Control Utility |
|---|
| | Operating System 1.Support for Windows 10 64-bit |
|---|
| | Form Factor 1.ATX Form Factor 30.5cm x 24.4cm |
|---|
| | Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. 2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
|---|
| | Item Dimension (LxWxH) 14 x 11 x 4 Weight 5.00 LB Warranty Information 3 years |
|---|
| | |
|---|
| | |
|---|
| |
|---|
