Description

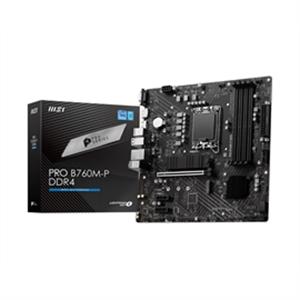

xPRO B760M-P DDR4
• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications
xDetail Specifications
| | CHIPSET INTEL B760 |
|---|
| | CPU SUPPORT Supports 12th/13th Gen Intel CoreTM Processors, Pentium Gold and Celeron Processors LGA 1700 |
|---|
| | MEMORY 4x DDR4, Maximum Memory Capacity 128GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|---|
| | ONBOARD GRAPHICS 1x HDMITM Support HDMITM 1.4, maximum resolution of 4K 30HzNote 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60HzNote 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz (NoteAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.) |
|---|
| | EXPANSION SLOT 1x PCI-E x16 slot 2x PCI-E x1 slot PCI SlotE1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI SlotE2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI SlotE3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|---|
| | STORAGE 2x M.2 M.2 Slot1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2 Slot2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.) |
|---|
| | RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|---|
| | USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
|---|
| | LAN Realtek RTL8111H Gigabit LAN |
|---|
| | AUDIO Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|---|
| | INTERNAL I/O 1x Power Connector(ATX PWR) 1x Power Connector(CPU PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|---|
| | LED FEATURE 4x EZ Debug LED |
|---|
| | BACK PANEL PORTS VGA DisplayPort HDMITM Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) |
|---|
| | OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit |
|---|
| | PCB DIMENSION mATX |
|---|
| | Item Dimension (L inchxW inchxH inch) 11 x 11 x 4 Weight 4 lbs Warranty Information 3 Years |
|---|
